Dental unit ANTHOS A3 Plus

STANDARD COMPOSITION - Dental unit made up of:

INSTRUMENTS TABLE

Mounted on a double arm of which the first of 500 mm and the other selfbalanced and articulated with 44 cm vertical excursion. Removable and autoclavable silicone instrument rest. It houses up to 6 instruments (6th instrument optional). Each instrument has a no retraction system for the spray, automatic chip-air and spray water adjustment for each single instrument. Safety system that allows the activation of the first extracted instrument only. Locking system of the recall lever of the instruments (syringe excluded). Extractable stainless steel TRAY HOLDER, suitable to house two standard trays. MODULE WITH 3 FUNCTION STAINLESS STEEL SYRINGE Nr. 2 4-WAY MIDWEST MODULES

DENTIST'S CONSOLE with 3 DIGIT display to show speed/power of instruments and principal functions

X-ray viewer with automatic turn off

Control console equipped with one-touch keypad for using ANTHOS A3 PLUS Operative Software and having the following functions: -operating lamp ON/OFF -fibre optic of instruments ON/OFF (optional)) -control of micromotor rotation inversion -timed warm water cup filler and timed water bowl flush -free auxiliary control (ex: assistant call) -chair movements -memorisation of 4 chair working positions and 2 chair service positions -activation of: rinse program/automatic return/ return to zero postiion/ emergency program

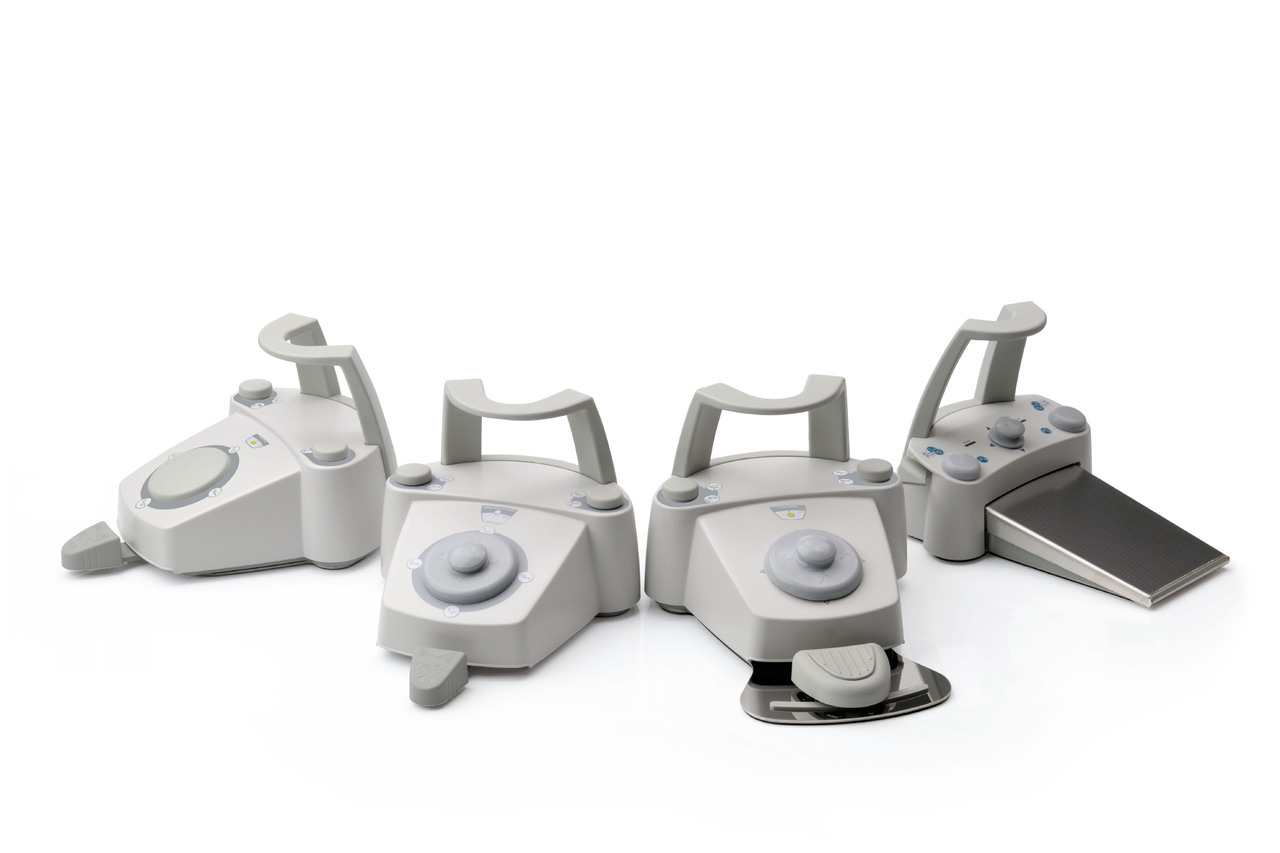

STANDARD FOOT CONTROL with the following functions:

-activation and progressive adjustment of electrical instruments speed/power -activation chip air and piping rinse (W.C.S. system)

CUSPIDOR UNIT

Chair mounted, equipped with removable ceramic bowl with 270° rotation Removable and disinfectable cup filler.

PRO 01 ASSISTANT'S INSTRUMENT TABLE

Fitted on articulated arm. Table module with 4 holders able to house 2 suction hoses and 2 additional operating instruments such as: optional syringe/ curing light/ C-U2 integreated camera/water saliva ejector It is equipped with one-touch keypad featuring:

-operating lamp ON/OFF -timed water cup filler; timed water bowl flush; -rinse program -return-to-zero position activation -chair movements

ANTHOS A 1.3 PATIENT CHAIR

With electro-mechanical movement of: -up/down movements (min. H 41 cm. ; max. H 81 cm) -Maximum load: 190 kg -Trendelenburg movement synchronized with the backrest motion -safety systems on patient chair base and backrest to prevent entrapment -headrest with double articulation and manually controlled stop -complete with washable and seamless SKAI

CONNECTION BOX with ON/OFF control for pneumatic, hydraulic and electrical connections Air and water filters.230 V–50 Hz power supply. Low voltage controls.

VENUS-e OPERATING LAMP fitted to the dental unit:

Luminous intensity 26.000 lux, colour temperature 4.100° K Regulation of brighrt intensity 3 axis rotation/ Protective screen
